Overview

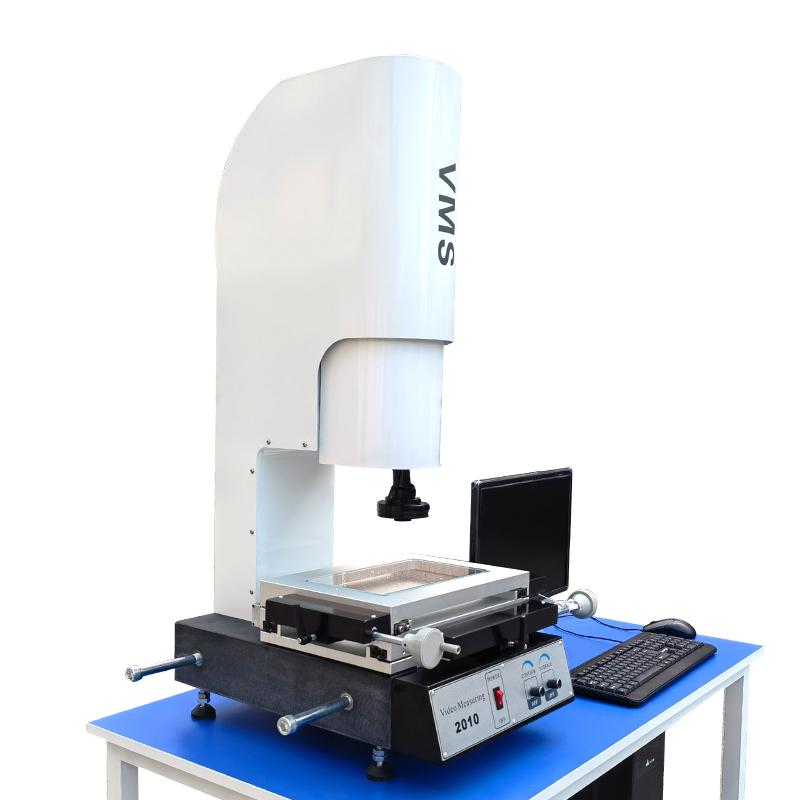

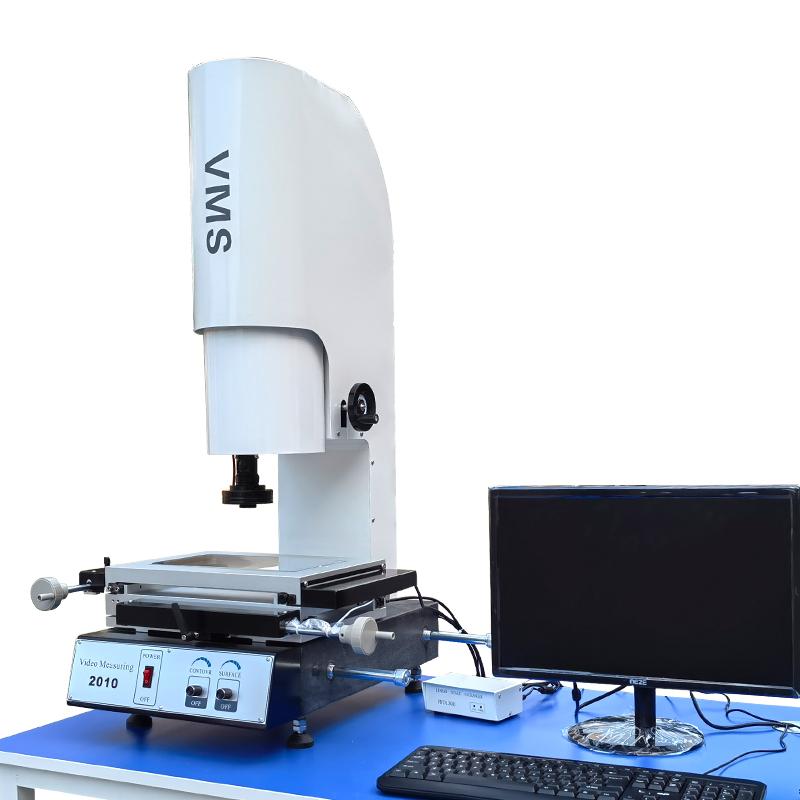

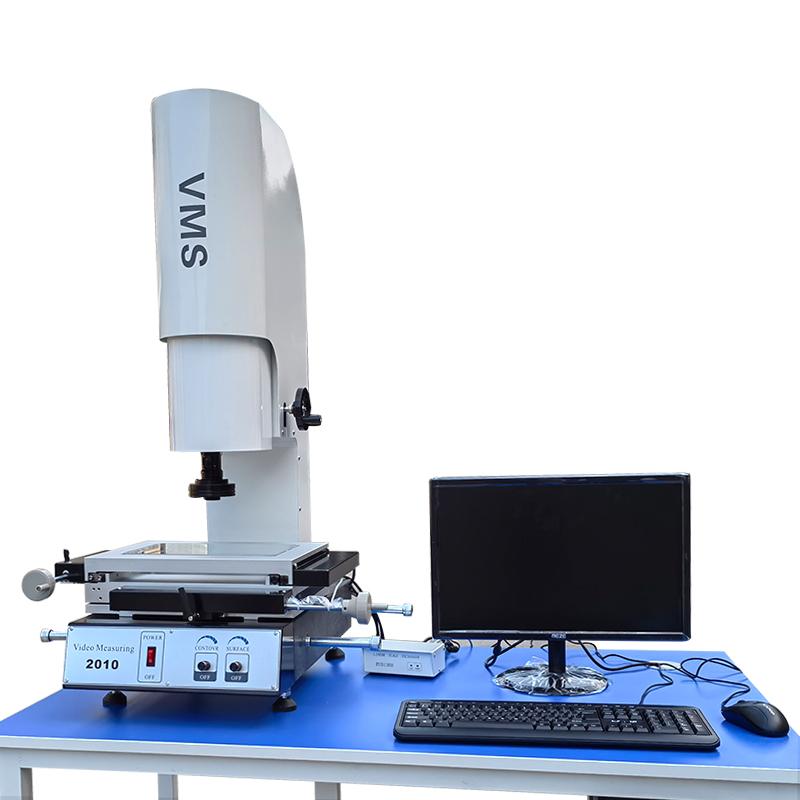

NBC-YX-3020 is a two-dimensional image measurement instrument using digital Measuring method. It converts the shape of the object into a computer through image acquisition and uses professional measurement software for size measurement. The instrument is mainly used for the detection, positioning, evaluation and diagnosis of internal defects of the workpiece (such as welds, crazing, inclusions, pores, etc.), and is suitable for laboratories and engineering sites.
Features
1. Adopt all-marble structure (base, column, workbench are High Accuracy "Jinan Green" natural granite), with high Stability and rigidity, stable chemical performance, corrosion resistance, no deformation, no rust.
2. Strengthen Structure and Appearance Design, Focus on Software Function Practicality and Stability, Provide Cost-effective Products.
3. Three-axis friction precision transmission, sensitive and reliable, no backlash, fast movement.
4. Optical inspection system and high resolution CCD ensure clear measurement picture.
5. Adjustable LED annular surface light source to achieve large-angle lighting and avoid thermal deformation of the workpiece.
6. Optical inspection ruler and data processing by the digital measurement and data processing system.
Principle
The two-dimensional image measurement instrument converts the shape of the measured object into a computer through image acquisition through digital Measuring method, and then uses professional measurement software for size measurement.
Applications
Boiler, Pressure Vessel, Aerospace, Aviation, Electric Power, Petroleum, Chemical Industry, Offshore Oil, Pipeline, Military Industry, Shipbuilding, Automobile, Machinery Manufacturing, Metallurgy, Metal Processing Industry, Steel Structure, Railway Transportation, Nuclear Power, Universities
Steps
1. Place the measured object on the workbench.
2. Transform the shape of the object into the computer through the image acquisition system.
3. Use professional measurement software for dimensional measurement and analysis.
Notice
• Recommended operating environment temperature is 19~ 24 ℃, humidity is 45%~ 75%.
• Power supply voltage is 220V (AC)/50HZ to ensure power matching.
• Optional accessories include Z-axis imaging altimetry or UK Reishaw probe contact measurement, on demand.
