$ 6751.00Ex works
Stability is ensured by all-marble structure, three-axis friction transmission is sensitive without backlash, Measurement accuracy (3 + L/200) μm, adjustable LED Illuminant avoids thermal deformation of workpiece, and supports Z-axis height measurement or probe measurement.
Category : Other Instruments
Brand : AISRY
SKU : NB044694
Service :The delivery and service By NBCLab.Com

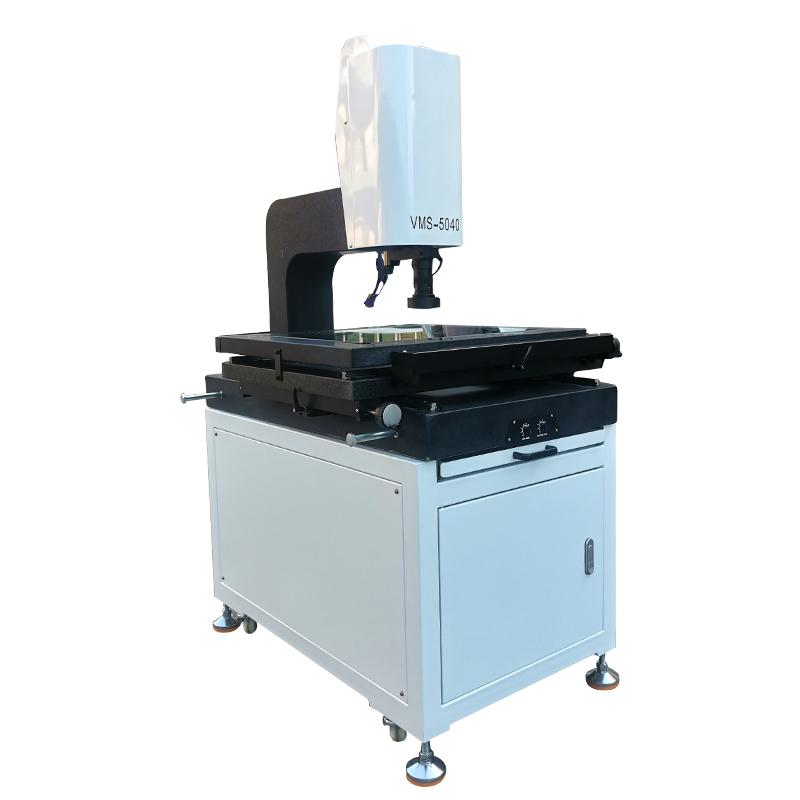

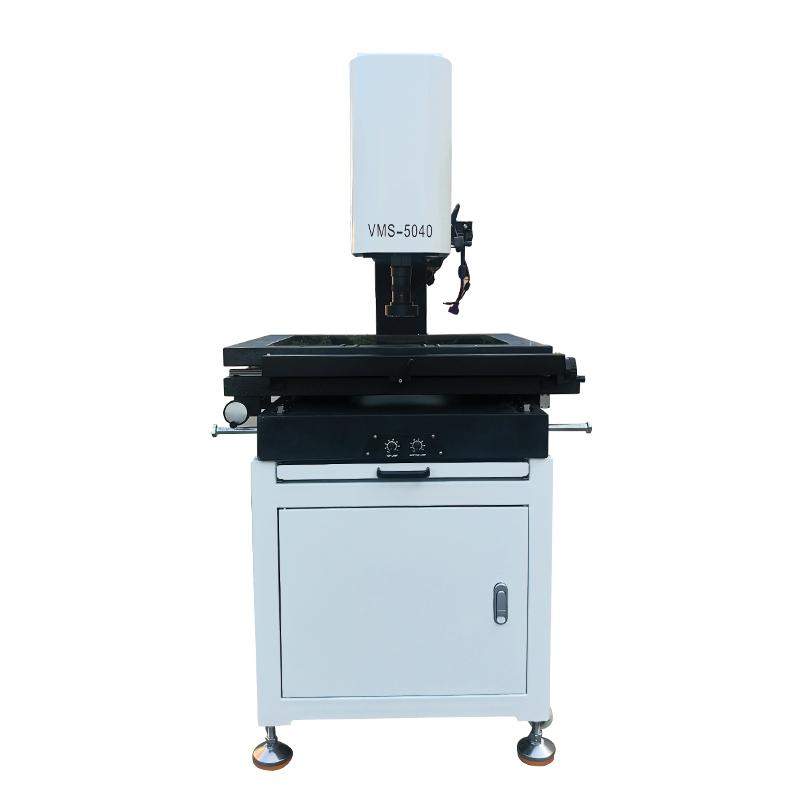

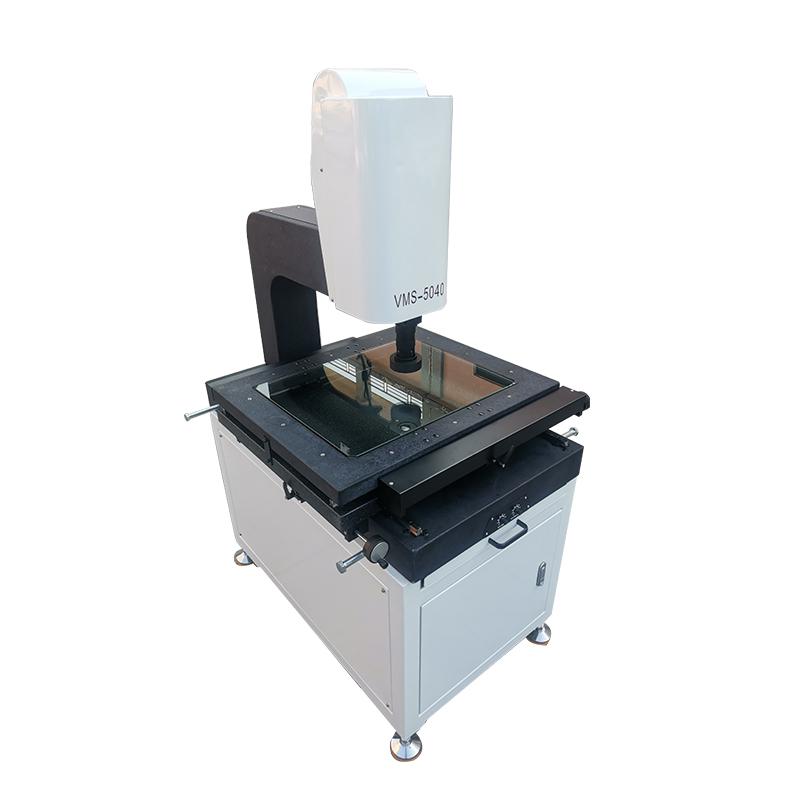

The NBC-YX-5040 manual imager is a two-dimensional image measurement instrument. It adopts the digital Measuring method to convert the shape of the measured object to the computer through image acquisition, and uses professional measurement software for size measurement. Compared with the Optical inspection projection magnification measurement method of traditional projectors, this product is more advanced. It is mainly used for the detection, positioning, evaluation and diagnosis of various defects inside the workpiece (such as welds, crazing, inclusions, pores, etc.), and is suitable for laboratories and engineering sites.
1. Adopt all-marble structure (base, column, workbench are made of High Accuracy "Jinan Green" natural granite), with high Stability and rigidity, stable chemical performance, acid, alkali and corrosive gas erosion, no deformation, no rust; 2. Strengthen Product Structure and Appearance Design, Focus on Software Function Practicality and Stability, Provide Cost-effective Products; 3. Three-axis friction precision transmission, sensitive and reliable, no backlash, can move quickly; 4. Optical inspection system and high resolution CCD ensure clear measurement picture; 5. Adjustable LED annular surface light source to achieve large-angle lighting and avoid thermal deformation of the workpiece. 6. Optical inspection ruler and data processing by the digital measurement and data processing system.
The two-dimensional image measurement instrument converts the shape of the measured object into a computer through image acquisition, and uses professional measurement software for size measurement. It adopts digital Measuring method, which is more accurate and efficient than the Optical inspection projection amplification method of traditional projectors. The system consists of CCD camera, Optical inspection system and data processing unit to realize non-contact measurement.
Boiler, Pressure Vessel, Aerospace, Aviation, Electric Power, Petroleum, Chemical Industry, Offshore Oil, Pipeline, Military Industry, Shipbuilding, Automobile, Machinery Manufacturing, Metallurgy, Metal Processing Industry, Steel Structure, Railway Transportation, Nuclear Power, Universities
1. Place the measured object on the workbench. 2. Transform the shape of the object into a computer through an image acquisition system. 3. Use professional measurement software for dimensional measurement and defect analysis; 4. Adjust the light source and magnification as needed to optimize the measurement effect; 5. Record and process measurement data.
• Power supply voltage 220V (AC)/50HZ; • It is recommended to operate in an environment with a temperature of 19~ 24 ° C and a humidity of 45%~ 75%; • Avoid thermal deformation of the workpiece, and pay attention to the lighting angle when using an adjustable LED light source; • Optical inspection system and transmission components are checked regularly to ensure sensitivity and reliability; • Optional accessories include Z-axis image altimetry or British Reishaw probe contact measurement, according to requirements.
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
