Overview

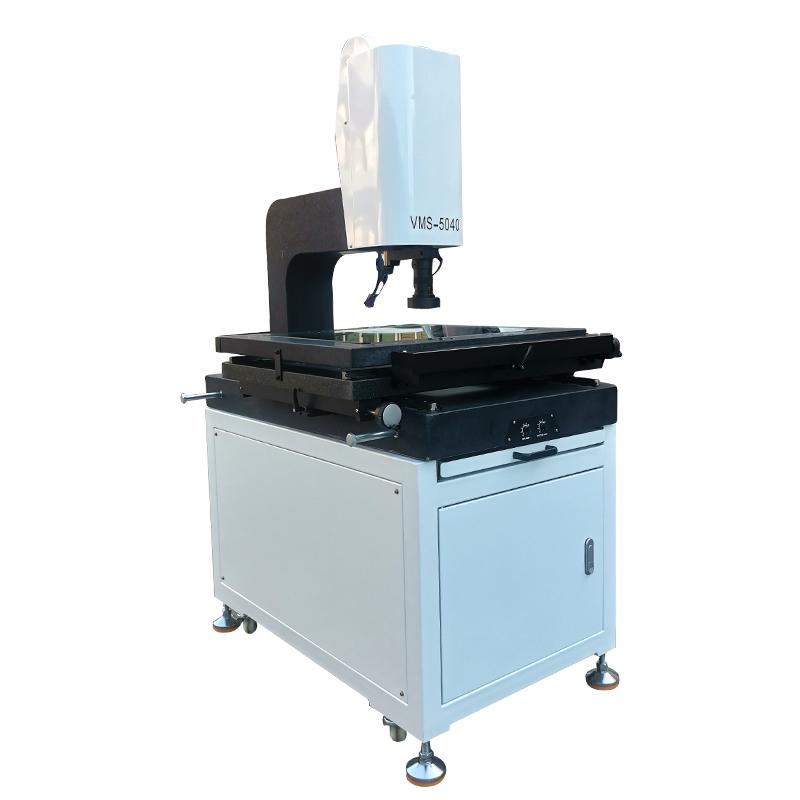

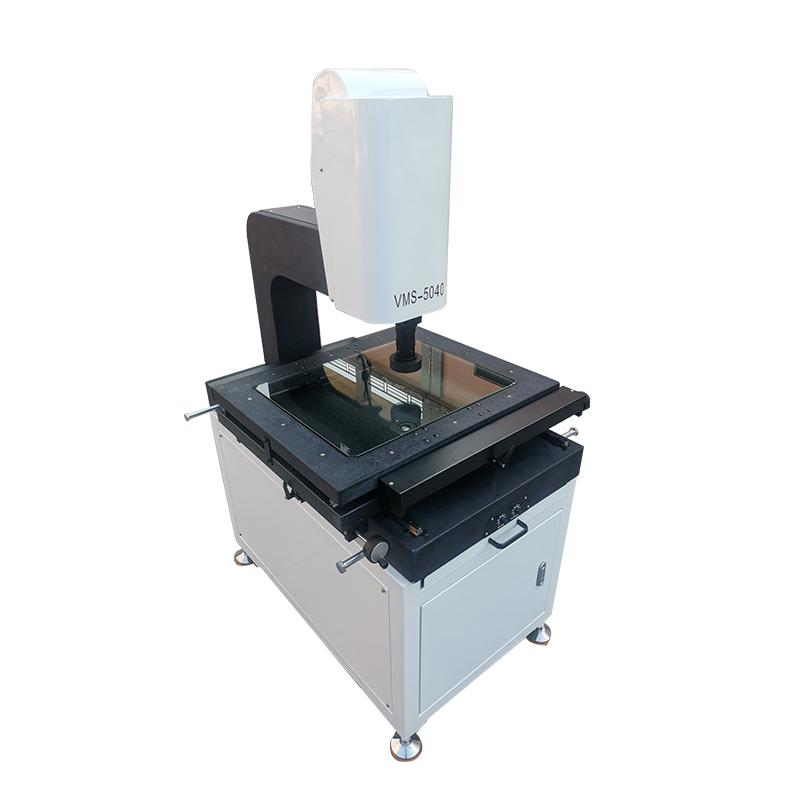

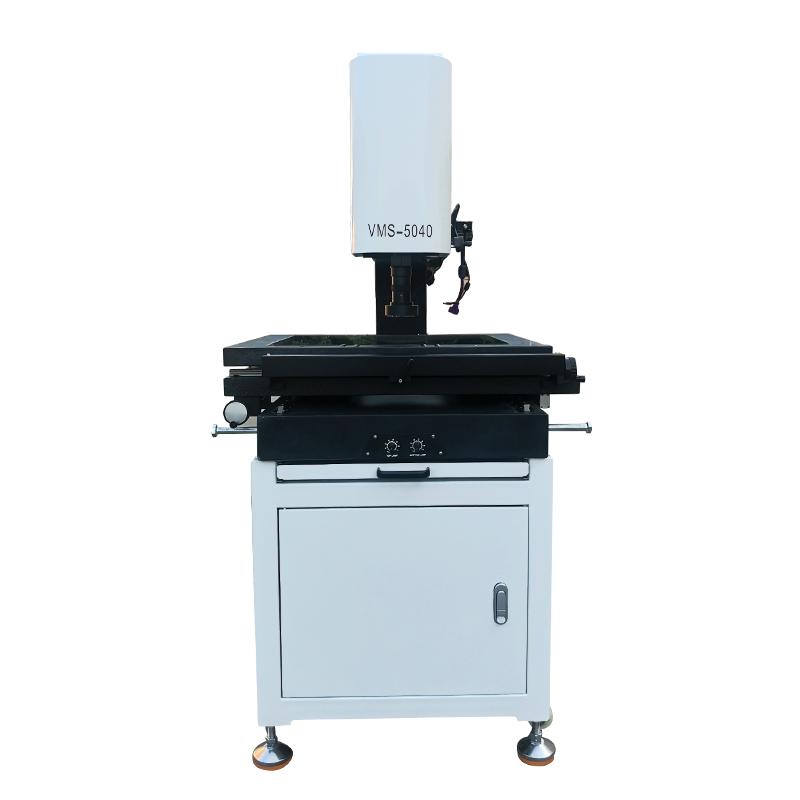

The manual imager (model: NBC-YX-6050) adopts the digital Measuring method to convert the shape of the measured object to the computer through image acquisition, and uses professional measurement software for size measurement. Compared with the Optical inspection projection magnification method of traditional projectors, this product is more advanced. It is mainly used for the detection, positioning, evaluation and diagnosis of various defects inside the workpiece (such as welds, crazing, inclusions, pores, etc.), suitable for laboratories and engineering sites.
Features
1. Adopt all-marble structure (base, column, workbench are made of High Accuracy "Jinan Green" natural granite) to ensure high Stability and rigidity, stable chemical performance, corrosion resistance, no deformation, no rust.
2. Strengthen Product Structure and Appearance Design, Focus on Software Function Practicality and Stability, Provide Cost-effective Products.
3. Three-axis friction precision transmission, sensitive and reliable, no backlash, fast movement.
4. Optical inspection system and high resolution CCD ensure clear measurement picture.
5. Adjustable LED annular surface light source to achieve large-angle lighting and avoid thermal deformation of the workpiece.
6. Optical inspection ruler and data processing by the digital measurement and data processing system.
Principle
The two-dimensional image measurement instrument converts the shape of the object into the computer through image acquisition, and uses professional measurement software for size measurement. Optical inspection projection amplification is different from traditional projectors, this product adopts digital processing technology to achieve accurate measurement.
Applications
Boiler, Pressure Vessel, Aerospace, Aviation, Electric Power, Petroleum, Chemical Industry, Offshore Oil, Pipeline, Military Industry, Shipbuilding, Automobile, Machinery Manufacturing, Metallurgy, Metal Processing Industry, Steel Structure, Railway Transportation, Nuclear Power, Universities
