Overview

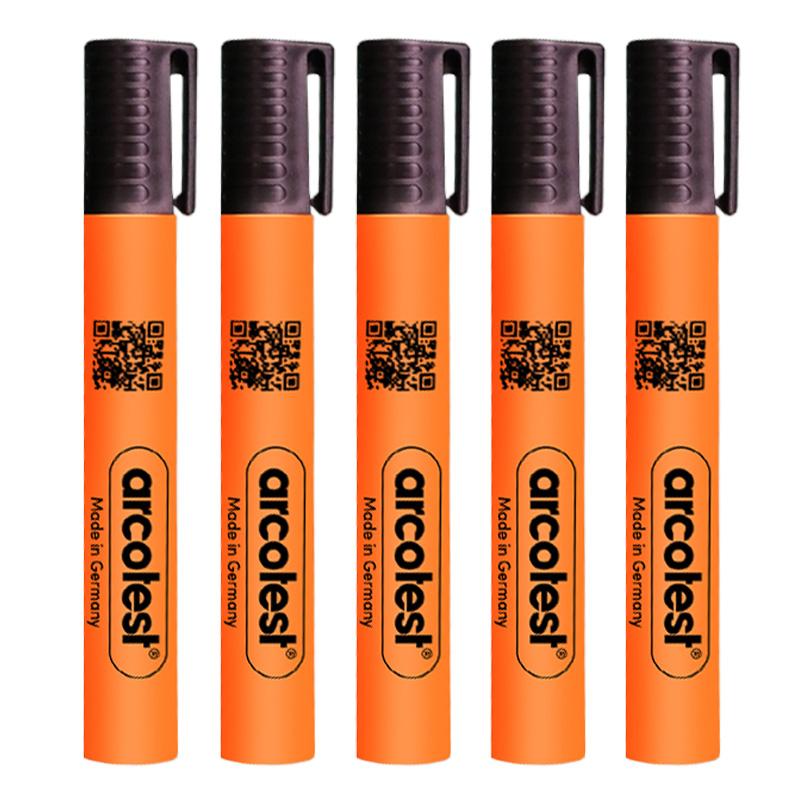

Arcotest 32 #Dyne pen is a professional tool for testing Dyne Level of various materials. It has a fiber wear-resistant pen head, 15ML large-capacity design, simple use method, and accurate analysis results to +/- 0.5 dynes. The product has passed the international SGS certification. It has the selling points of accurate testing, long service life, sealing pen cap, wide use range, long shelf life, etc. Color is uniform and accurate, the formula is friendly and easy to observe, line drawing film formation, support for rapid detection and complete models.
Features
1. Can accurately test a variety of materials, including film, metal, PCB board, plastic, ceramics, etc
2. Fiber wear-resistant pen tip is not easy to deform, smooth writing, suitable for long-term testing
3. The pen cap is closely combined with the pen body to prevent the pen and ink from evaporating and ensure a long shelf life of the ink
4.15ML large-capacity design, suitable for a variety of industry needs
5. Test accuracy of +/- 0.5 dyne
6. Provide 38 dyne models, covering 28-70 models, to meet different needs
7. Passed the international SGS certification, accurate test, long service life, good sealing, wide range of applications
8. The test is smooth and continuous ink, and the fiber pen head is smooth and wear-resistant.
9. Color is uniform and accurate, test details are easy to observe, bright colors
10. Formula friendly, easy to observe, line film formation
11. Can accurately test whether the Surface Energy Value/Surface Cleanliness of the substrate reaches the pen body value
12. Easy to observe, the nib fits the substrate and draws lines to film formation, easily capturing subtle changes
13. Quick detection, the result can be obtained 2-4 seconds after drawing the line, safe and environmentally friendly, and the water outlet is smooth
14. Provide complete models to meet various usage needs
Principle
Dyne pen through the nib to the surface of the substrate to draw lines, ink in 2-4 seconds to form a film, according to the film formation to determine whether the substrate Surface Energy value or cleanliness to achieve the Dyne Level marked on the pen body. Fiber pen head water smooth, to ensure smooth and accurate testing.
Applications
Film, metal, PCB board, plastic, ceramic
Standards
International SGS certification
Steps
1. Fit the nib to the surface of the substrate to be tested
Step 2 Draw lines smoothly
3. Wait 2-4 seconds to observe the film formation
4. Determine whether Dyne Level is up to standard according to the film formation results
Notice
• Make sure the cap is well sealed before use to prevent ink evaporation
• When drawing lines, keep the nib attached to the substrate smoothly
• Observe the film formation time within 2-4 seconds
• Avoid the pen tip being squeezed and deformed by external force
• Cover the pen cap tightly in time after the test to extend the shelf life
