Overview

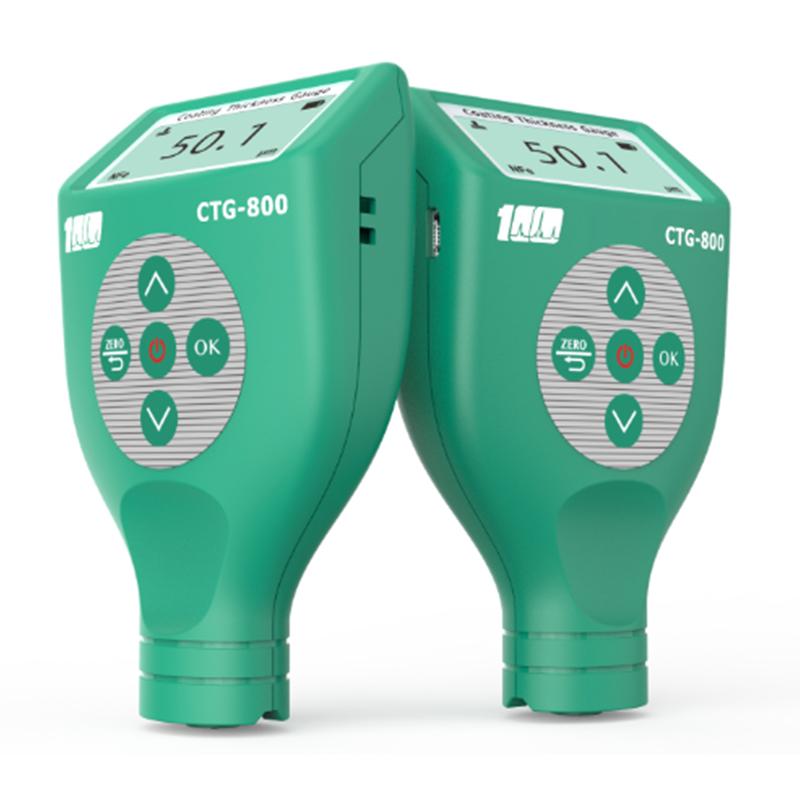

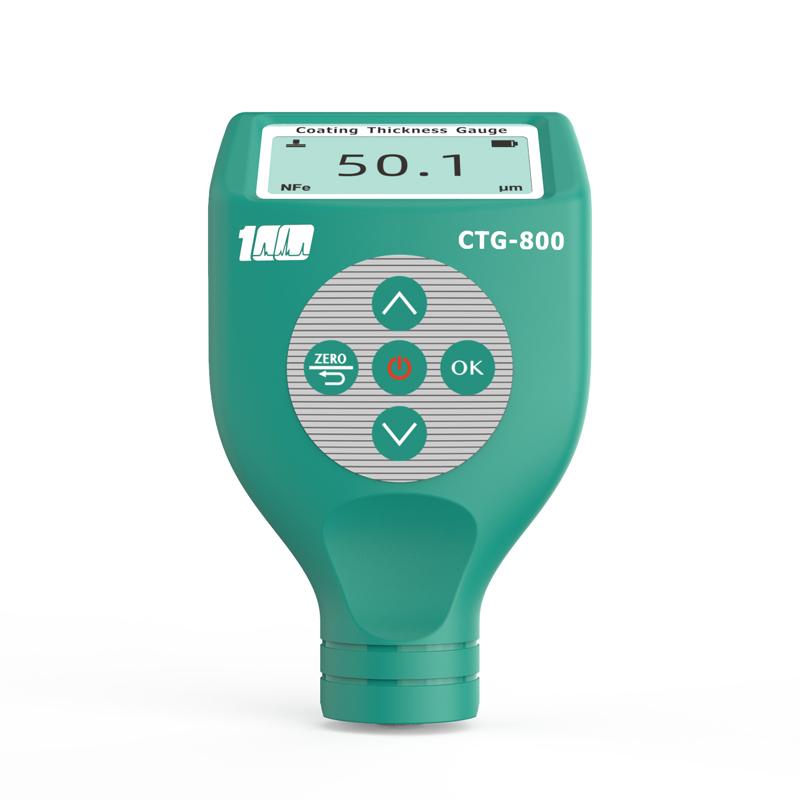

YIBAI CTG-800F5 Coating thickness gauge uses the principle of magnetic Induction to detect the nonmagnetic Coating thickness on all magnetic substrates. It can quickly, non-destructive and accurately measure the thickness of coatings and platings. It can be used in laboratories and engineering sites. This instrument can be widely used in the automotive industry, manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields.
Features
1. With backlight, large screen digital display, single point and multi-point calibrating and other functions;
2. High and low temperature resistance, anti-drop, Probe wear resistance (more than 500,000 times);
3. Test Stability, Test speed, suitable for a variety of measurement environments;
4. High accuracy, Stability, can measure 1-5μm ultra-thin coatings;
5. Measurement speed up to 0.3 seconds/time;
6. The large-screen digital display is clearer;
7. Two shutdown methods: manual shutdown mode and automatic shutdown mode;
8. Measurement range and high resolution;
9. Adopt digital backlight display, regardless of differences, suitable for night use.
10. Measurement mode: single measurement/continuous measurement;
11. It has the function of metric-inch unit conversion to achieve μm/mil conversion.
12. Newly designed shell and internal structure to enhance product beauty, anti-drop and anti-Impact ability;
13. Measurement accuracy is good;
14. The spring guide sleeve Probe with wear-resistant cemented carbide probe also guarantees constant compression and stable sampling values for measurement on hard or rough surfaces.
Principle
The YIBAI CTG-800F5 Coating thickness gauge uses the principle of magnetic Induction to detect nonmagnetic Coating thickness on all magnetic substrates. The Fe function detects nonmagnetic Coating thickness on all magnetic substrates, such as lacquers on steel, iron, powder coatings, plastics, porcelain, chromium, copper, zinc, etc.
Applications
Automobile industry, manufacturing industry, metal processing industry, chemical industry, commodity inspection
Standards
National standards, international standards
Steps
1. Single measurement or continuous measurement;
2. Use manual or automatic shutdown.
Notice
• Applicable occasions: nonmagnetic coatings on magnetic substrates;
• Operating Environment: Temperature -10-50 ℃, Humidity < 80%;
• Power supply method: 2 AA batteries.
