Overview

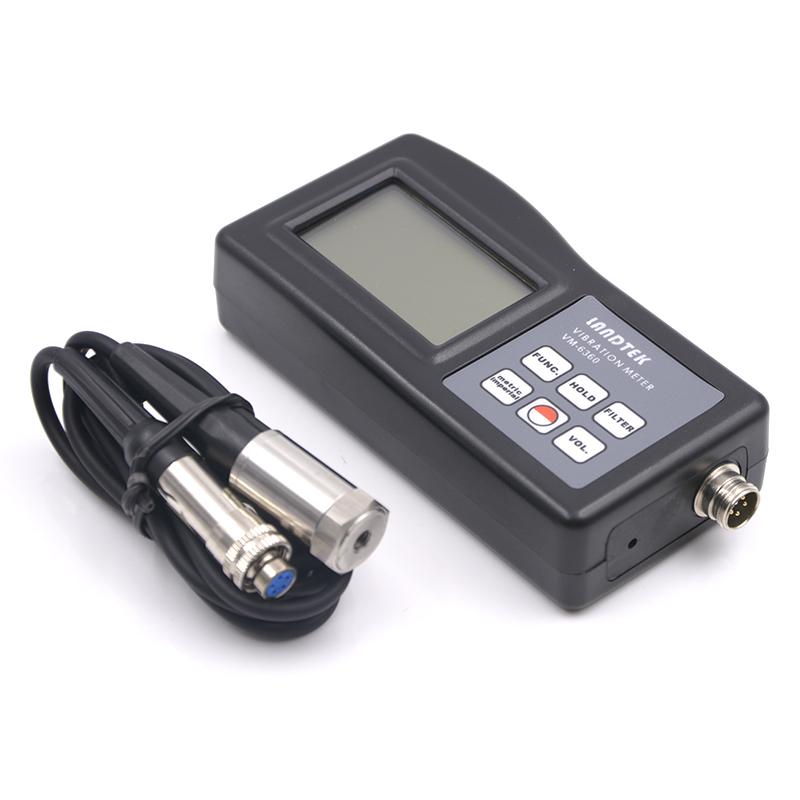

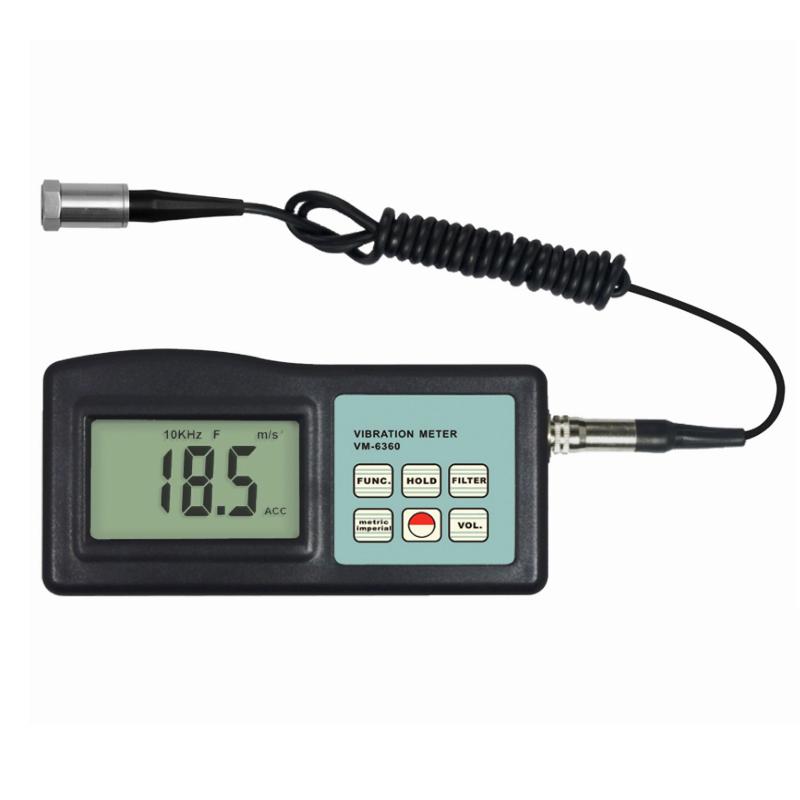

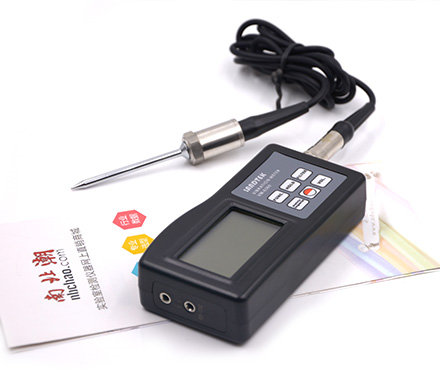

VM6360 Vibration Meter is a LANDTEK brand instrument designed for on-site measurement of various mechanical vibrations. It uses a high-performance piezoelectric Acceleration Sensor to provide accurate and reproducible measurements. The instrument supports displacement, speed and Acceleration measurement through USB data cable output, RS-232 data cable output or Bluetooth communication with PC. Frequency range is wide, up to 10Hz~ 10KHz in Acceleration mode, in line with international standard ISO2954, for periodic motion measurement to detect imBalance and deviation of moving machinery.
Features
1. Frequency range is wide, Acceleration mode can reach 10Hz~ 10KHz; 2. In line with international standards ISO2954; 3. Support USB data cable output and RS-232 data cable output and PC communication; 4. High-performance piezoelectric Acceleration Sensor to achieve accurate and reproducible measurement; 5. With AC signal output, easy to auscultation and recording; 6. Optional headphones for stethoscope; 7. Provide Bluetooth data output selection; 8. Specially designed for on-site measurement of various mechanical vibrations, providing data for quality control, running time and prior equipment maintenance; 9. Support metric system conversion and battery voltage low voltage prompt.
Principle

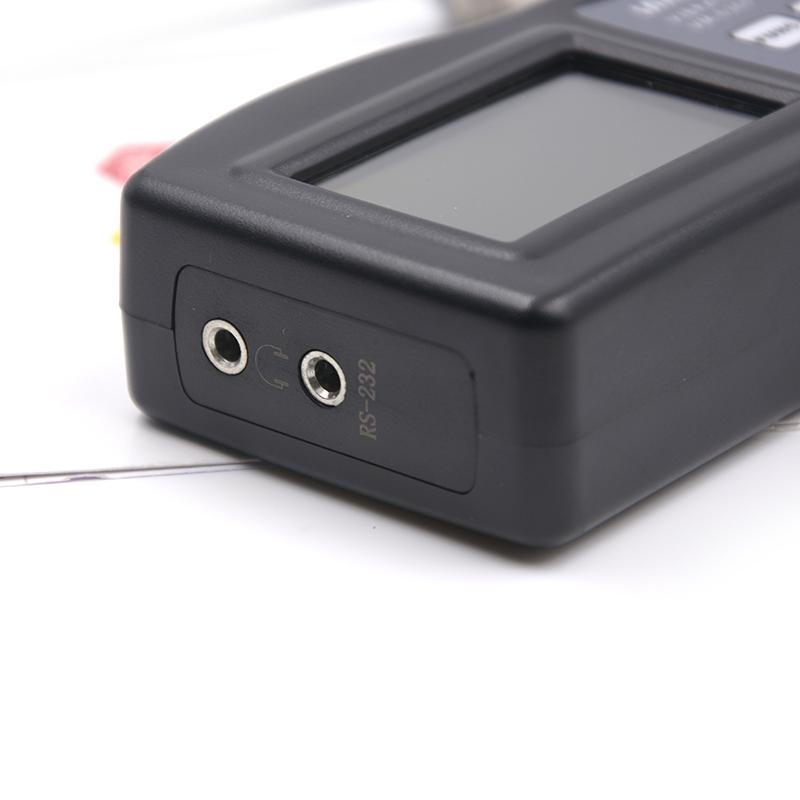

The VM6360 Vibration Sensor is based on the principle of Piezoelectric Acceleration Sensor, which converts mechanical vibrations into electrical signals and processes the measurement of displacement, velocity and Acceleration parameters through internal circuits. The instrument supports a variety of Data output methods, including USB, RS-232 and Bluetooth, to achieve communication and data transmission with PC, AC signal output is convenient for auscultation and recording.
Applications
Mechanical vibration measurement, quality control, equipment maintenance, running time monitoring
Steps
1. Install 4 AA batteries; 2. Select Measurement mode (Displacement, Speed or Acceleration); 3. Place the Sensor on the mechanical surface to be tested; 4. Read measurement data; 5. Output data to PC via USB, RS-232 or Bluetooth; 6. Optional headphones for auscultation.
Notice
• Operating temperature range is 0~ 50 ℃; • relative humidity should be less than 90% RH; • Pay attention to the low voltage prompt of the battery and replace the battery in time; • Ensure that the load resistance is 10kΩ to match the output; • When used in bearing inspection in x10 mode, pay attention to the Acceleration Frequency range of 10Hz~ 10KHz; • Avoid using in an environment beyond the specifications.
