Overview

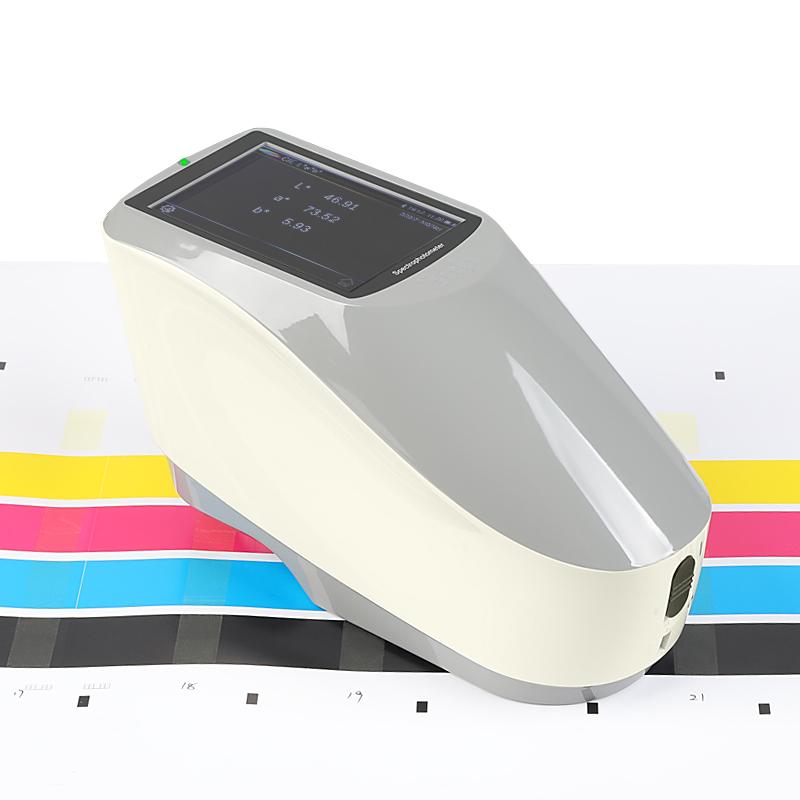

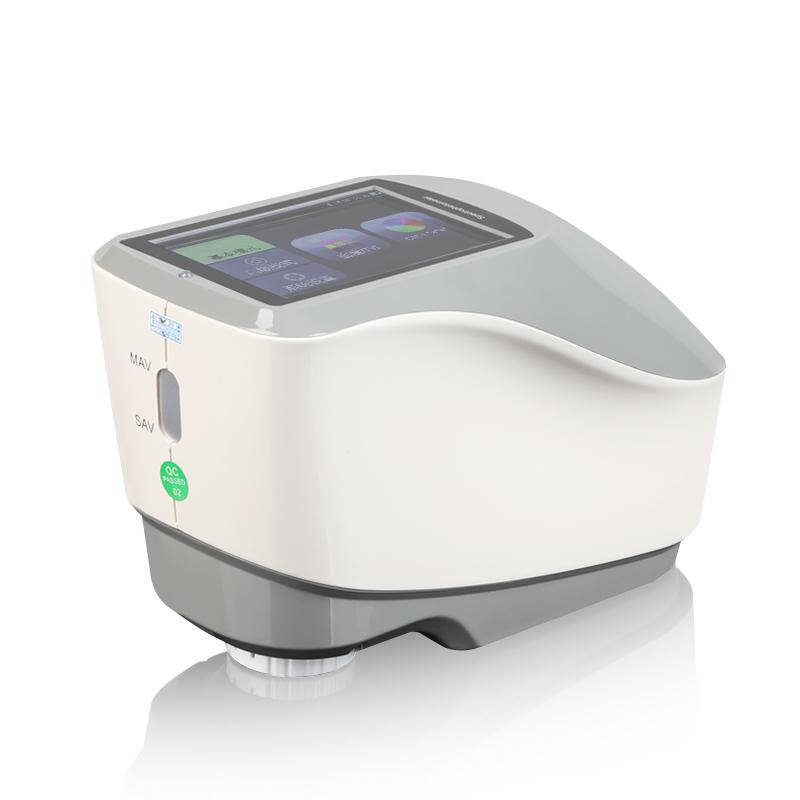

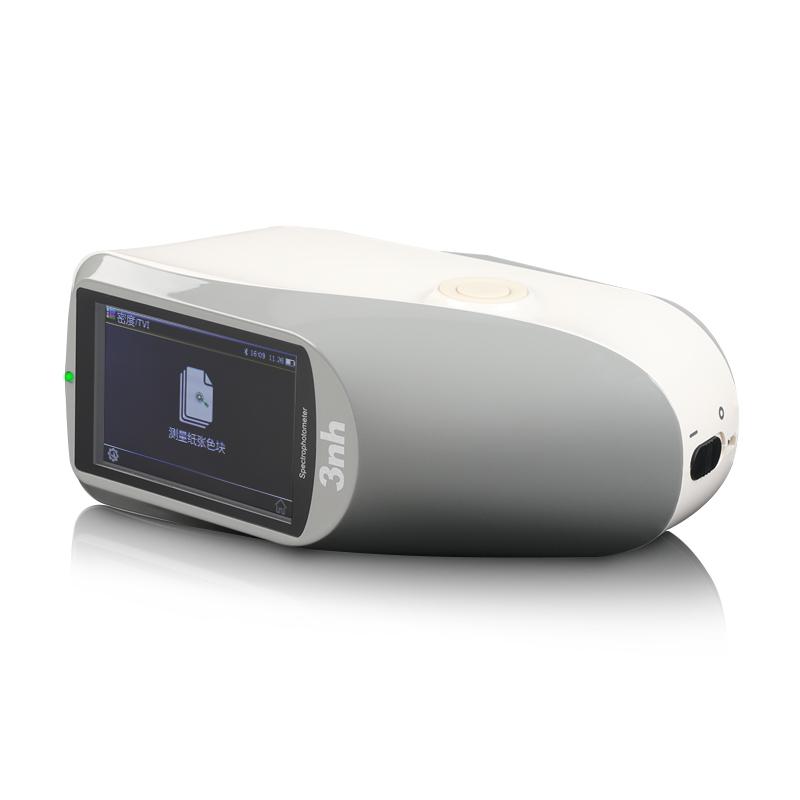

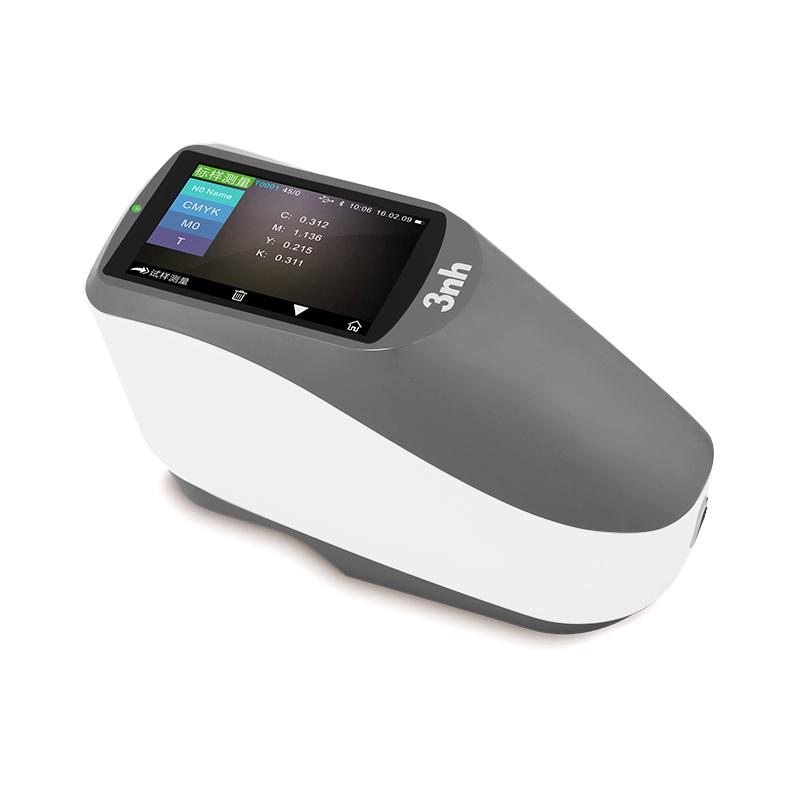

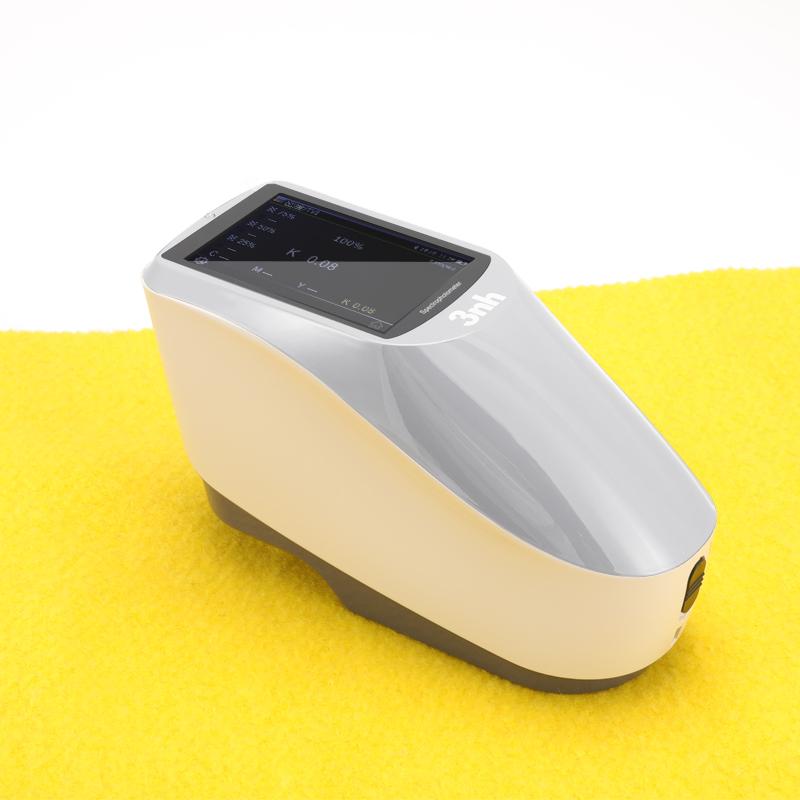

The YD5010 Grating Spectroscopic Density Instrument is a High Accuracy Color measuring instrument under the 3nh brand. It fully complies with the ISO 5-4 standard and supports the MO, M1, M2 and M3 test conditions specified in ISO 13655. It can accurately realize ISO Status T, E, A and I Density measurement. The instrument is stable and reliable, with accurate measurement data and powerful functions. It is equipped with a variety of measurement calibers. It is widely used in inks printing plants, paper mills, traffic road signs industry, Spinning & weaving clothing printing and dyeing industries, as well as scientific research institutions, mass testing institutions and laboratories.
Features
Adopt 45/0 geometrical optics structure, comply with CIE No.15 standard, support ISO 13655 specified MO, M1, M2, M3 test conditions, accurate realization of ISO T, E, A, I Density measurement
2. Appearance is beautiful, in line with human mechanics design
3. High Life and Low Power Combined LED Illuminant, Including UV Light
4. The diameter 2/4/8/20mm can be selected arbitrarily to adapt to a variety of tested samples
5. Accurate measurement of sample Reflection spectrum, CMYK Density, Lab data for accurate Color transfer
6. High electronic hardware configuration, including 3.5-inch TFT true color screen, capacitive Touchscreen, concave grating, 256-pixel dual-array CMOS detector
7. Support USB/Bluetooth 2.1 dual communication mode, wide adaptability

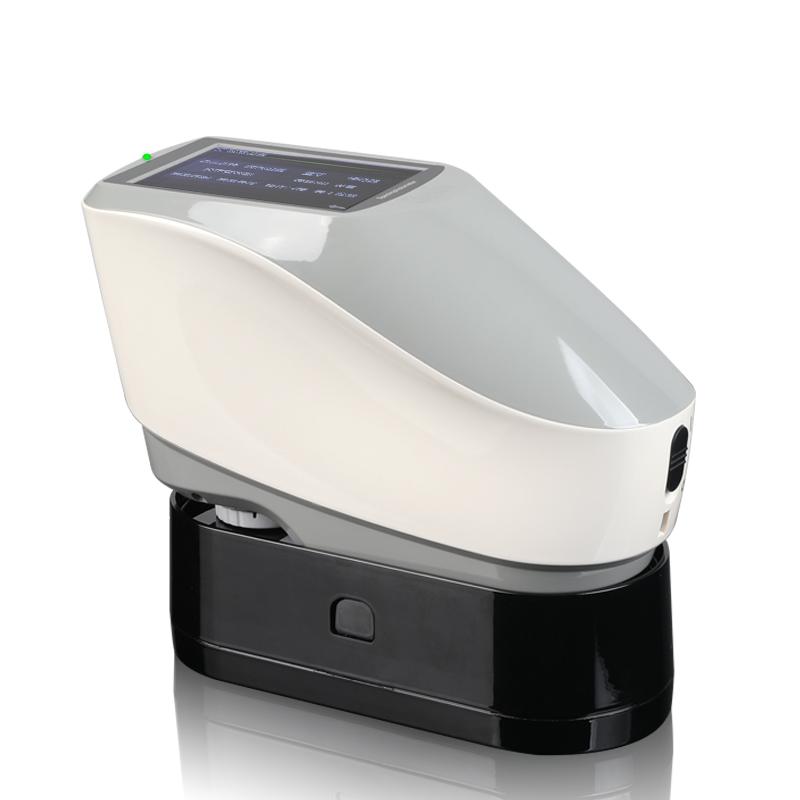

8. Equipped with a stain-resistant and stable standard whiteboard
9. Large-capacity storage space, capable of storing more than 20,000 test data
10. Provide two Standard Observer angles, a variety of Illuminant modes, a variety of color systems, chroma indicators that meet a variety of standards
11. Especially suitable for printing plant process control and quality control
12. The PC-side software is powerful and supports functional expansion
Principle
Under the CIE recommended 45/0 geometrical optics lighting conditions, based on the MO, M1, M2, M3 test conditions specified in the ISO 13655 standard, the instrument uses concave grating spectroscopy technology and 256 pixel dual-array CMOS image sensor to accurately measure the reflectance data of the sample. Accurate measurement and representation of various Density indicators, color difference formula, and Color index can be carried out in multiple Color Spaces.
Applications
Inks printing mills, paper mills, traffic signs industry, Spinning & weaving garment printing and dyeing, scientific research institutions, mass testing institutions, laboratories
Standards
ISO 5-4、ISO 13655、CIE No.15
Steps
1. Connect the computer to use high-end Color Management software
2. Select the appropriate measurement caliber
3. Set measurement conditions (MO, M1, M2 or M3) as required
4. Select measurement mode (single measurement or average measurement)
5. Conduct sample measurements
6. Transfer data via USB or Bluetooth
7. View and analyze measurement results
Notice
• Operating Ambient Temperature should be in the range of 0~ 40 ℃
• The relative humidity should be kept at 0~ 85% RH (no condensation)
• The use altitude should be less than 2000m
• Storage Ambient Temperature -20~ 50 ℃, relative humidity 0~ 85% RH (no condensation)
Make sure the battery can support about 5000 measurements in 8 hours
• Illuminant life of 5 years, can support more than 3 million measurements
